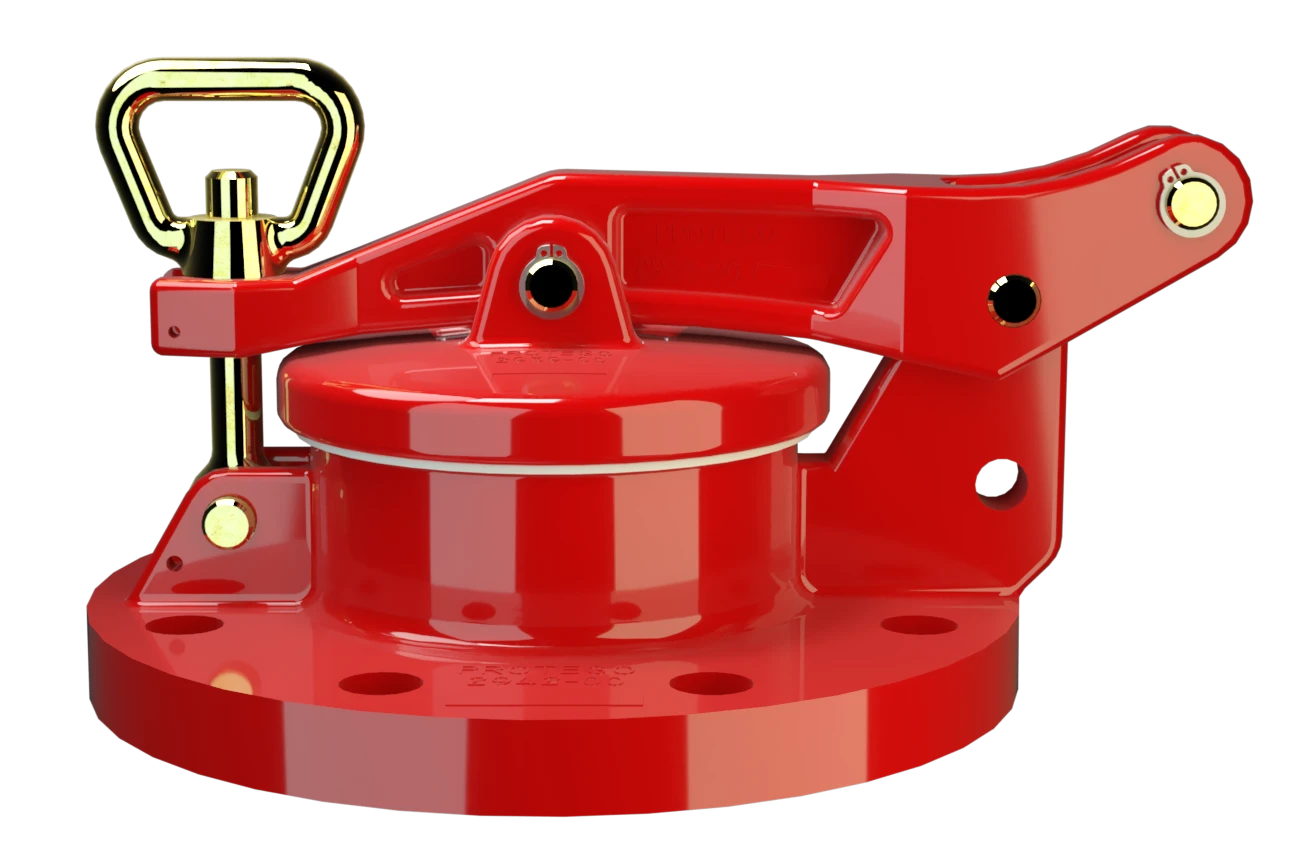

PF/K, PF/TK, PS/KF
Gauge Hatch with flange
Features
Aberturas de sondeo bloqueables
Para aberturas de sondeo bloqueables, que solo se abren para medir el nivel o para la toma de muestras
Marcas de sondeo de acero inoxidable
Los cuerpos vienen equipados de serie con marcas de nivel de acero inoxidable
Control accionado con el pie
En el diseño accionado con el pie, el pedal está conectado con el cuerpo y el soporte
Function and Description
Level Gauging and Sampling Nozzles for Tanks
PROTEGO® Gauge Hatches Types PF/K, PF/TK, and PS/KF are used as lockable gauge nozzles which are only opened for gauging or sampling. Otherwise, they are tightly closed.
The Gauge Hatches PROTEGO® PF/K, PF/TK, and PS/KF mainly consist of housing, gauging nozzle lid, and gauging nozzle bracket. The housing is equipped with stainless steel gauging marks as standard.
In the pedal-operated version PROTEGO® PF/TK, the gauging nozzle pedal is connected to both the housing and the bracket.
Product Data
Dimensiones

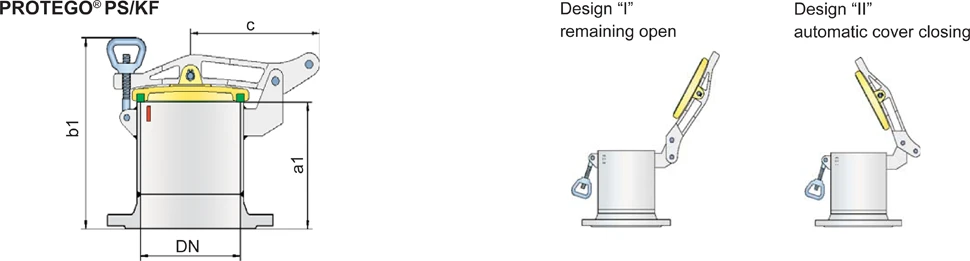

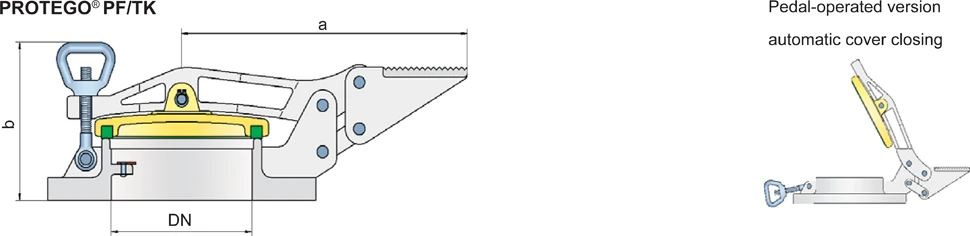

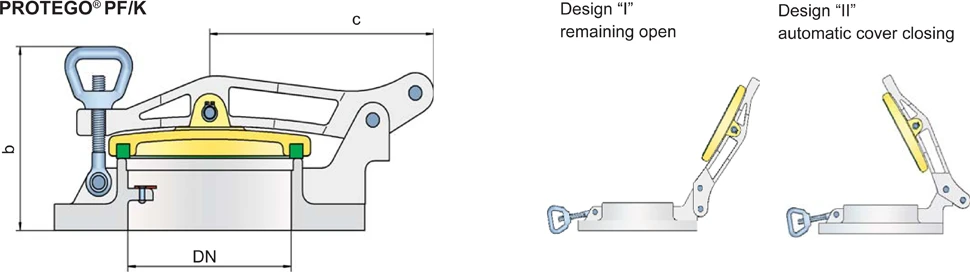

| DN | 100 / 4'' | 150 / 6'' | 200 / 8'' |
| a | 260 / 10.24 | 305 / 12.01 | 335 / 13.19 |
| b | 150 / 5.91 | 155 / 6.10 | 175 / 6.89 |
| c | 160 / 6.30 | 205 / 8.07 | 235 / 9.25 |
| a1 | 225 / 8.86 | 265 / 10.43 | 300 / 11.81 |
| b1 | 315 / 12.40 | 360 / 14.17 | 405 / 15.94 |
Dimensiones en mm / pulgadas
The nominal size depends on the dimensions of the gauging and sampling device
Selección de materiales
| Design | B | C | D |
| Housing | Stainless Steel | Aluminium | Steel |
| Cover | Stainless Steel** | Aluminium | Steel |
The combination of steel and Aluminium in explosive enviroments is prohibited due to ignition danger.
* only for PF/K and PF/TK
** only for PF/TK-100

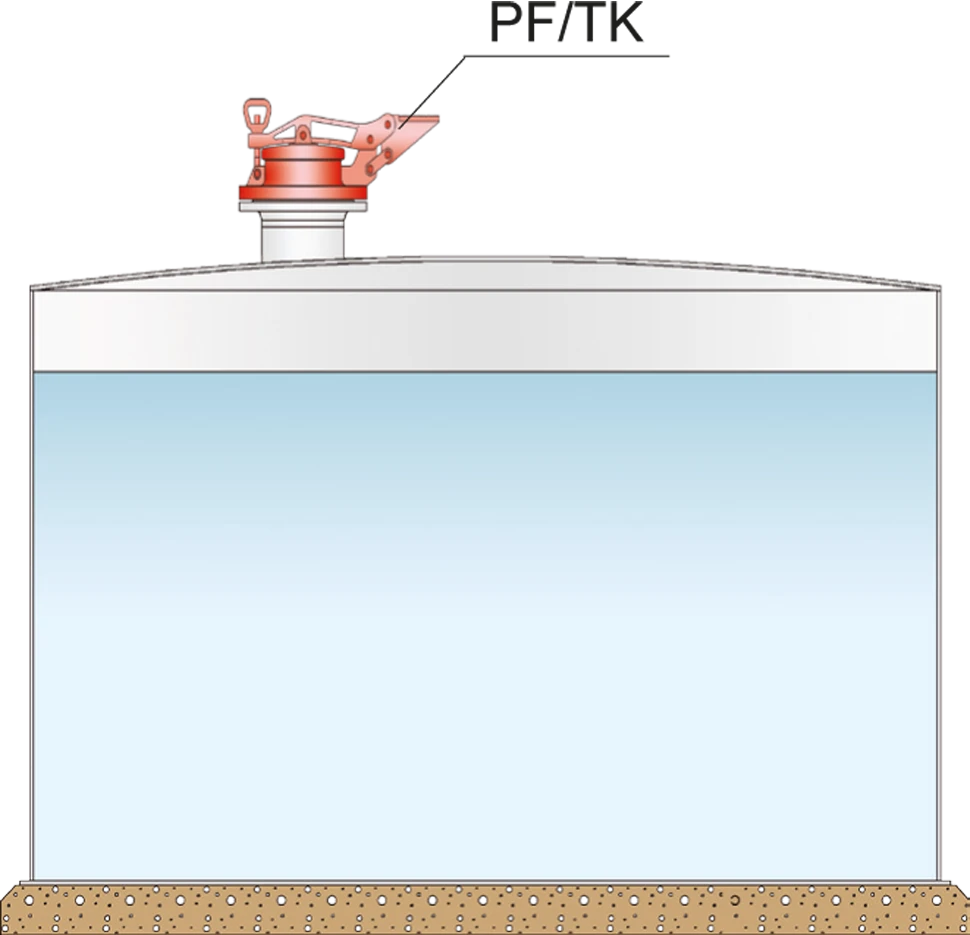

Gauge Hatches can for instance be used in combination with the Manual gauge devices type PROTEGO® H/P or wih the gauging and sampling device PROTEGO® VP/HK.

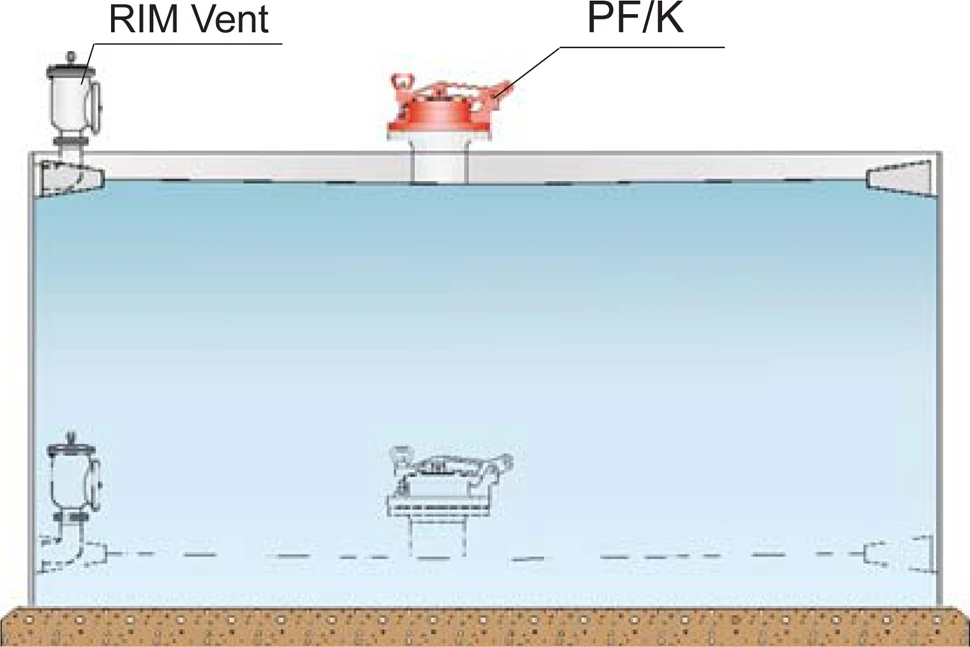

Gauge Hatches can be applied on tanks with floating roof.
