EH/0S
Vent Cap, End-of-Line
Features
Dispositivo eficiente en coste
Cost Effective Device
La caperuza proporciona protección
Contra los efectos del entorno (condiciones meteorológicas adversas, nidos de aves, etc.)
Prácticamente libre de mantenimiento
Prácticamente libre de mantenimiento
Curvas de caudal certificadas
Certified Flow Performance Curves
Function and Description
Weather Protection Hood for Efficient Ventilation
The PROTEGO® EH/0S vent cap allows vessels which are not pressurized to vent. This device prevents rain and dirt entering the vent line. The PROTEGO® EH/0S vent cap is not flame transmission proof. It is often used in combination with Detonation Flame Arresters, when those are used in vent lines, installed at a position which creates a long run up distance from the end of the vent line to prevent endurance burning. The PROTEGO® EH/0S will then be installed at the end of that vent line to prevent particles or rain from entering the line.

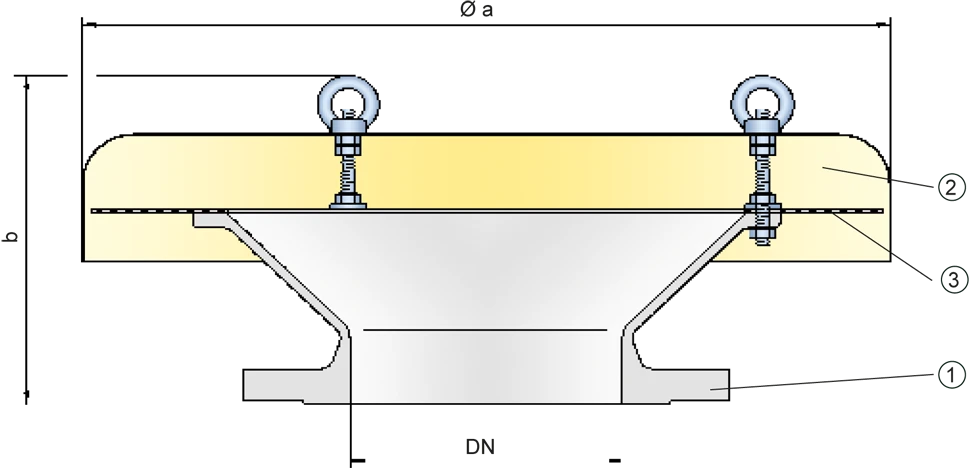

The vent cap PROTEGO® EH/0S main components are a housing (1), a weather hood (2) and a protection screen (3). The device is equipped with a fixed weather hood out of metal. The protection screen prevents particles or rain from entering the line.
Product Data
Dimensiones
To select the nominal size (DN), please use the flow capacity charts on the following pages
| DN | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 350 / 14" | 400 / 16" | 500 / 20" | 600 / 24" |
| a | 295 / 11.61 | 550 / 21.65 | 550 / 21.65 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 650 / 25.59 | 800 / 31.50 | 1000 / 39.37 |
| b | 230 / 9.06 | 240 / 9.45 | 240 / 9.45 | 325 / 12.80 | 320 / 12.60 | 335 / 13.19 | 370 / 14.57 | 385 / 15.16 | 520 / 20.47 |
Dimensiones en mm / pulgadas
Selección de materiales
| Design | A | B |
| Housing | Steel | Stainless Steel |
| Weather hood | Stainless Steel | Stainless Steel |
Special materials upon request
Tipo de bridas de conexión
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
