Protego BR

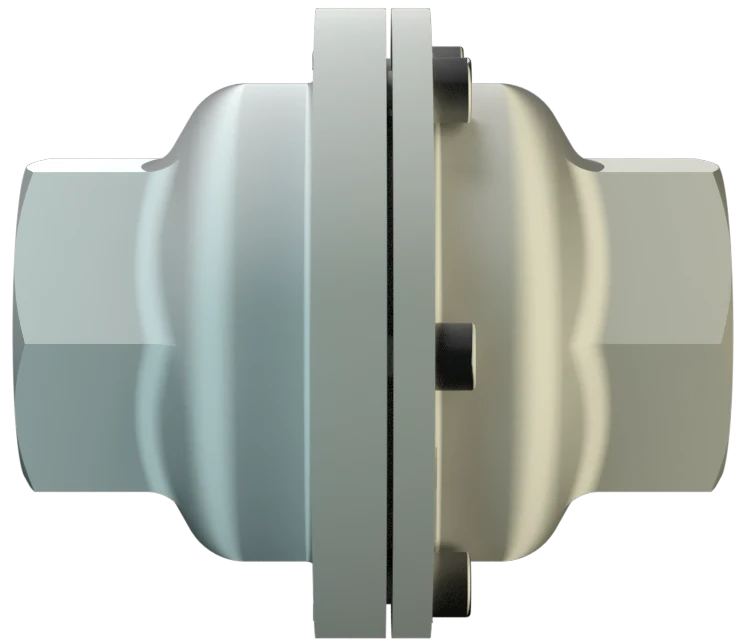

FA-G-IIA1-P2.2

In-Line Deflagration Flame Arrester for biogas, sewage gas and landfi ll gas, concentric design, bidirectional, endurance burning proof (under atmospheric conditions)

Features

Diseño modular
Permite la sustitución y limpieza de los discos de filtro FLAMEFILTER® de forma individual
Montaje y desmontaje más rápido
de un único disco de filtro FLAMEFILTER®
Conexión roscada
Transmisión bidireccional de la llama
Diseño de pruebas
Proporciona seguridad
Protege frente a deflagraciones para todos los grupos de explosión IIA, IIB3 e IIC (grupos NEC D, C y B)
Piezas de recambio
Piezas de recambio eficientes en costes
Function and Description

Protection of Fuel Supply Lines

The PROTEGO® FA-G-IIA1-P2.2 In-Line Deflagration Flame Arrester was specially developed for bio-, sewage- and landfill-gas applications. The compact design of the PROTEGO® FA-G makes it the state of the art technology for installation in pipes with diameters of ½” up to 2”. The devices are installed with minimal distance to the burner to prevent flashback in to the fuel feed lines. When installing the deflagration flame arrester, make sure that the distance between potential ignition sources and the location of the installed device, does not exceed the L/D ratio (pipe length/pipe diameter), for which the device was approved. As per EN ISO 16852 the L/D ratio is limited to (L/D) max ≤ 50 for Deflagration Flame Arresters of explosion group IIA1.

For Explosion Group IIA1 - Methan

The In-Line Deflagration Flame Arresters is symmetrical and offers bidirectional flame transmission protection. The device consists of two housing parts (1) and two FLAMEFILTER® (2) in the center. The PROTEGO® FA-G-IIA1-P2.2 Flame Arrester protects against deflagrations and endurance burning (under atmospheric condition) and short time burning for 1 min. for the maximum operating conditions of explosion group IIA1 - Methane.

Many Individual Certifications

PROTEGO® FA-G devices for substances of explosion groups IIA, IIB3 and IIC (NEC groups D, C, and B) are shown on separate pages. The standard design can be used up to an operating temperature of +60°C / 140°F and an absolute operating pressure up to 2.2 bar / 31.9 psi. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data

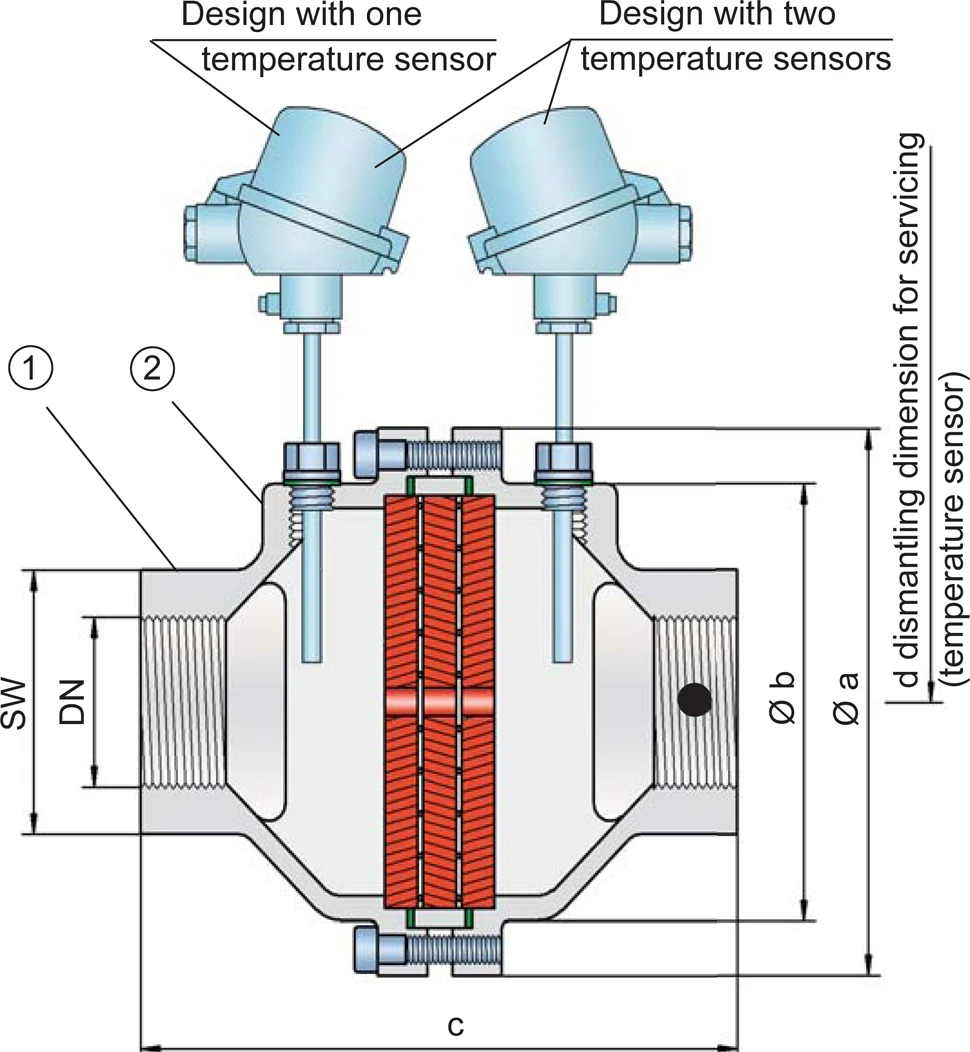

Dimensiones

To select the nominal size (DN), use the flow capacity charts on the following pages

DNG ½G ¾G 1G 1 ¼G 1 ½G 2
a 80/3.15 80/3.15 100/3.94 100/3.94 155/6.10 155/6.10
b 55/2.16 55/2.16 76/2.99 76/2.99 124/4.88 124/4.88
c 100/3.94 100/3.94 110/4.33 110/4.33 170/6.69 170/6.69
d -— 400/15.75 400/15.75
SW 32/1.26 32/1.26 50/1.97 50/1.97 75/2.95 75/2.95

Dimensions in mm / inches, SW= width across flats

Selección del grupo de explosión

MESGExpl. Gr. (IEC / CEN)
≥ 1,14 mmIIA1

Special approvals upon request

Selección de la máxima presión de operación

Expl. GrDNG ½G ¾G 1G 1 ¼G 1 ½G 2
IIA1 Pmax 2,2/31.9 2,2/31.9 2,2/31.9 2,2/31.9 2,2/31.9 2,2/31.9

Pmax = maximum allowable operating pressure in bar / psi absolute, higher operating pressure upon request

Especificación de la máx. temperatura de operación

≤ 60°C / 140°FTmaximum allowable operating temperature in °C
-Designation

higher operating temperatures upon request

Selección de materiales

DesignBC
HousingStainless SteelHastelloy
GasketPTFEPTFE
FLAMEFILTER®*Stainless SteelHastelloy

* the FLAMEFILTER® is also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing materials are used.

Special materials upon request

Tipo de conexión

Pipe thread DIN ISO 228-1DIN

other types of thread upon request

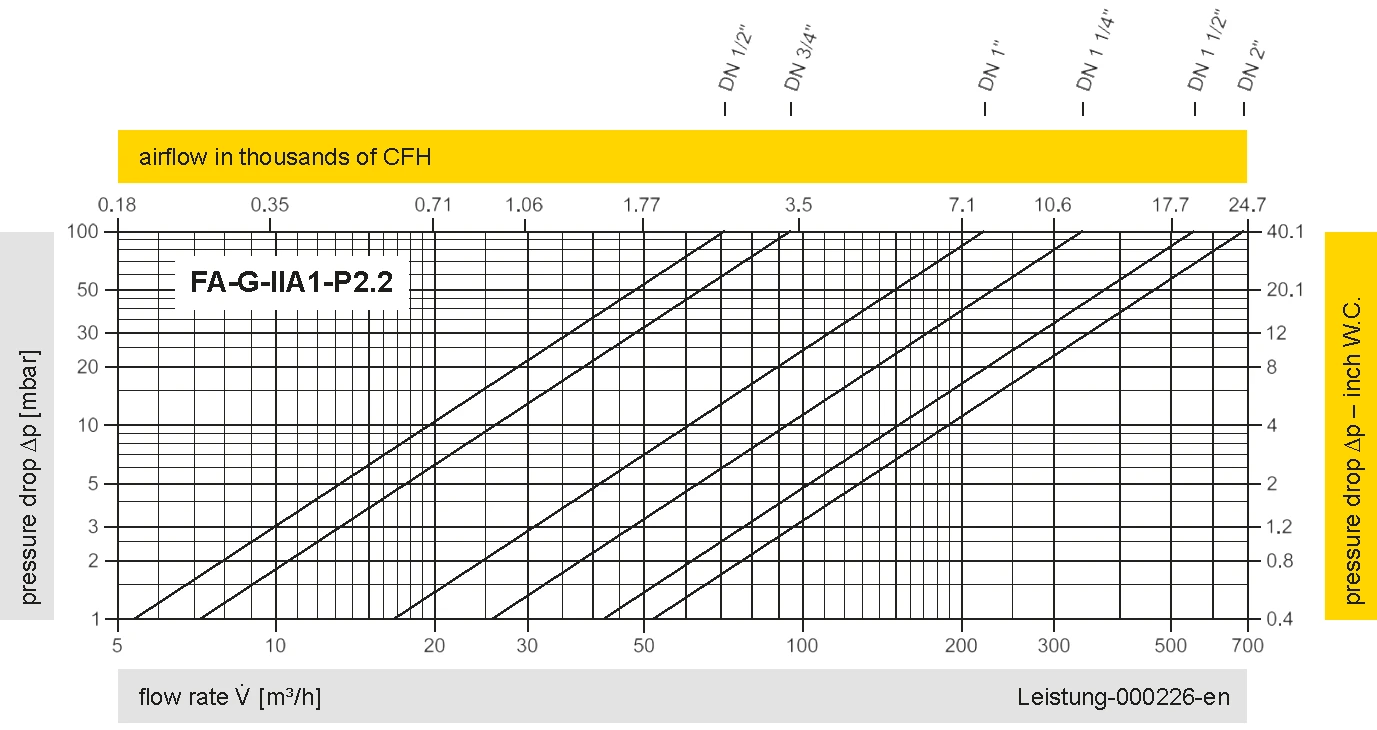

Diagrama de flujo volumétrico

Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
